How to test WMI access using WBEMtest tool ?

1) From Windows Search bar, search for WBEMTest and start it

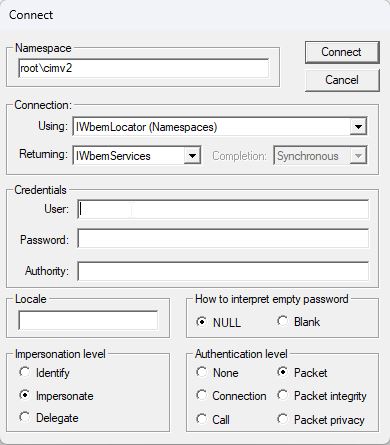

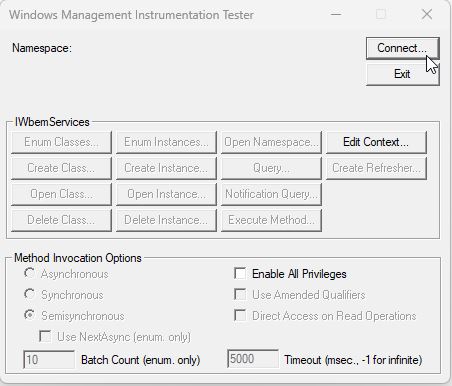

2) Click then on "Connect"

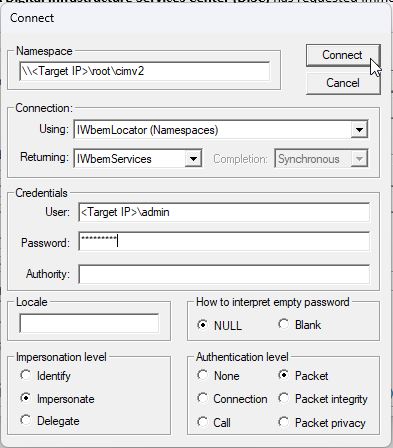

3) Modify then "Namespace" field to add \\ at the beginning followed by target system IP, also set "User" and "Password" fields

If connection fails WBEMtest should return an error starting with 0x800, please see Discovery: A WMI scan or wmic fails with an error starting with "0x800".

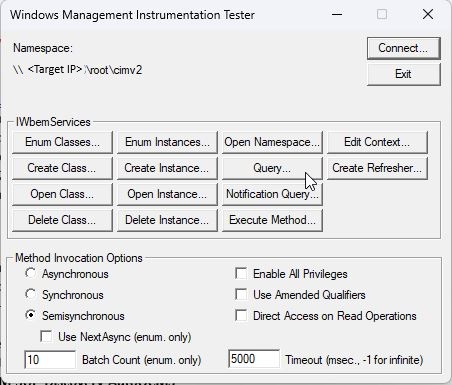

If connection succeed, display comes back to following screen (with Namespace set this time), Click on 'Query' button:

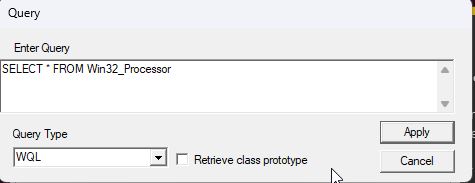

4) Execute a query and verify it successfully returns result:

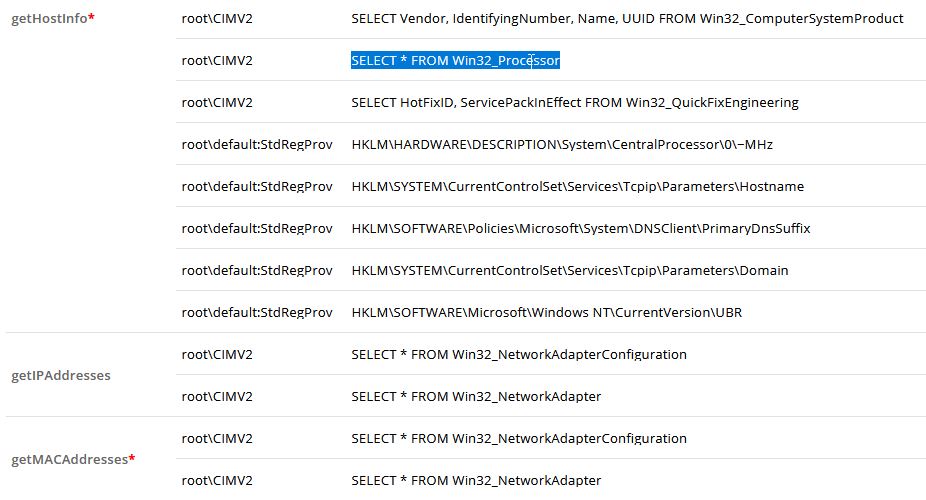

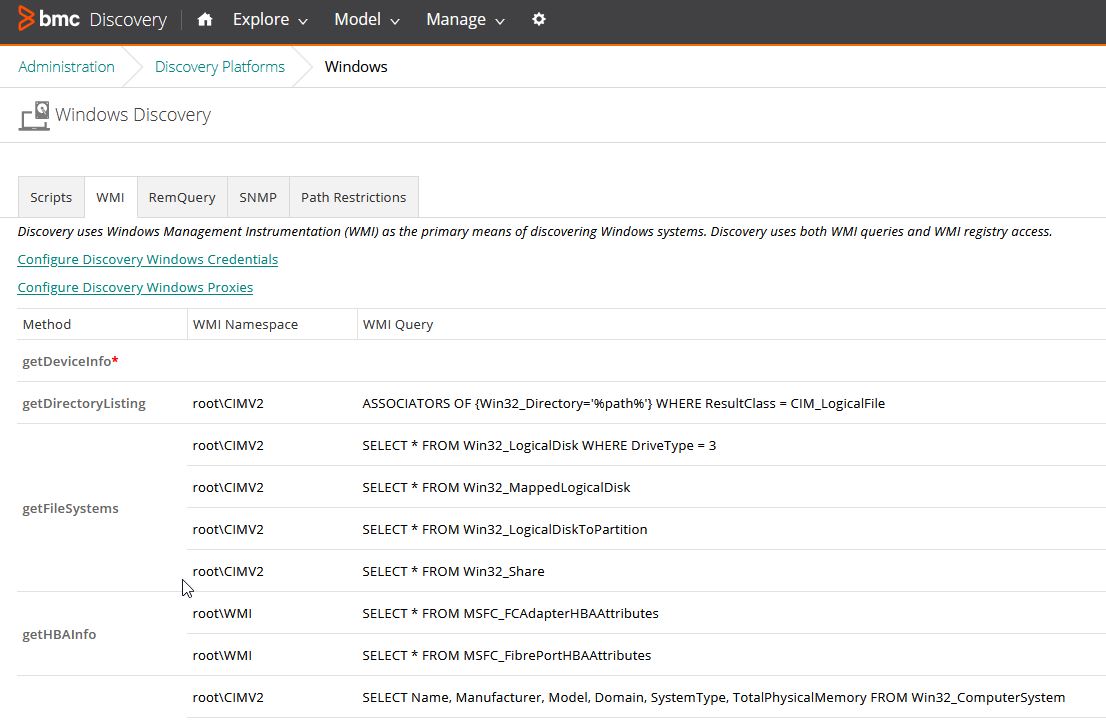

Pick up query from Mandatory Methods (the ones with an asterix) in Discovery UI > Administration > Discovery Platforms > Windows > WMI:
