Client Management: OS Deployment - Which ports to open on firewalls for the network boot listener to work?
Several ports need to be open between the target, the dhcp server and the network boot listener. Some configuration might have to be done specifically on the network for OSD to function.
BMC Client Management
Client Management
Any version of BMC Client Management (BCM) >= 12.0
BMC Client Management
Client Management
Any version of BMC Client Management (BCM) >= 12.0
Which ports do I need to open on firewalls for the OSD module to work?

IPHELPER is enabled, will it be a problem?

Can the internal DHCP Gateway from the OS Deployment (OSD) module be used if the network boot listener and the target are not in the same subnet?
1- Ports:
The following ports must be opened to be able to deploy devices. The ports must be opened bidirectionally:

SourceDestinationTypePortDescription
OSD Target SubnetNetwork Boot ListenerUDP68DHCP
DHCP ServerNetwork Boot ListenerUDP67DHCP
DHCP ServerOSD Target SubnetUDP67DHCP
OSD Target SubnetNetwork Boot ListenerUDP67DHCP
OSD Target SubnetNetwork Boot ListenerUDP69TFTP
OSD Target SubnetNetwork Boot ListenerTCP1610Client Management
OSD Target SubnetNetwork Boot ListenerTCP1611Client Management
OSD Target SubnetNetwork Boot ListenerTCP1613Client Management
Network Boot Listener / Image RepositoryOSD ManagerTCP1610Client Management
Network Boot Listener / Image RepositoryOSD ManagerTCP1611Client Management
Network Boot Listener / Image RepositoryOSD ManagerTCP1613Client Management
OSD Target SubnetImage RepositoryTCP1610Client Management
OSD Target SubnetImage RepositoryTCP1611Client Management
OSD Target SubnetImage RepositoryTCP1613Client Management
OSD Target SubnetImage Repository (captures)TCP139SMB
OSD Target SubnetImage Repository (captures)TCP445SMB
OSD Target SubnetNetwork Boot ListenerTCPDepends on their configuration (see screenshot below)Multicast Ports
OSD Target SubnetAll network on which other devices will be deployedTCPDepends on their configuration (see screenshot below)Multicast Ports

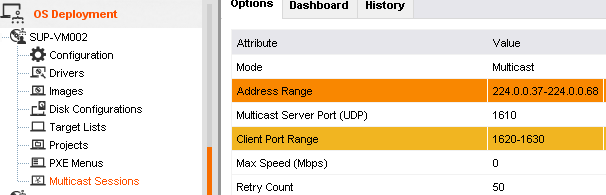

The multicast ports used int he OSD module configuration can be found here:

User-added image


2- Other network settings:
- Ensure IP Helper is not used if the DHCP server is a switch. If the DHCP server is not a switch and that IP Helpser is set, ensuire that it has the name of the network boot listener
- Ensure that no other setting discards dhcp servers that are not specifically white-listed, as an example.


3- Enable the DHCP Gateway
This functionality requires the network boot listener to be on the same subnet than the target. It will not work even though broadcast is allowed between their subnets.
